JCBL600/JCM118E15 LOW Cost Password Hotel Lock
- 201 Stainless steel lock for hotel
- Low cost
- Password unlock
- IC card unlock
- Cloud/LAN Management system
- APP unlock
- ANSI mortise support(HTlock System)
- Lock Deadbolt to supply power
- Deadbolt to limite staff to access
- Door Not close correctly alarm
Low Cost Password Hotel Lock
JCBL620 (TTlock Version) JCM118E15(HTlock Version) is the password version of our hotel door lock JCH118E15, which is an upgrade model from the classic hotel lock JCH118E01. It shares the main panel with the classic hotel door lock, hotels that already have the model JCH118E01 can upgrade to this model with a low cost by changing adding the password reader.
On-Premised LAN System to mamage Phonekey/code/cards easily
Multiple Unlock Methods
Password
Unlock Via Password that generated from Cloud/on-premised central system, with time limitation.
IC Card
Make a classic IC card to unlock the door, with time limitation and able to access public doors.
APP
Unlock by Bluetooth from APP, without carrying any key cards.
Key
A traditional mechanical key is always reliable, use it on emergency casse.
The Lock has a touch Keypad, Built in RFID card reader, a hidden Keyhole, and its control chip is Bluetooth.
With our management system, you can check in a guest, set checkin-checkout time, and assign unlock methods accordingly, the guest can choose to take a physical card, or use their phone, or use a password, total free of choose.
Hotel Engineer can use the Key to unlock if electronic methods not available , as a backup method.
ANSI mortise, Secure and Rich Feature
The ANSI mortise support to detect the deadbolt status, that if the staff card do not have access right, they will not be able to unlock the guest room accedently.
The Deadbolt when enable, Smart power saving of this system will start to supply power to the rooms, when guest unlock and get out, the system will automatically cut the power to the room to saving energy.
Multi-color, OEM available

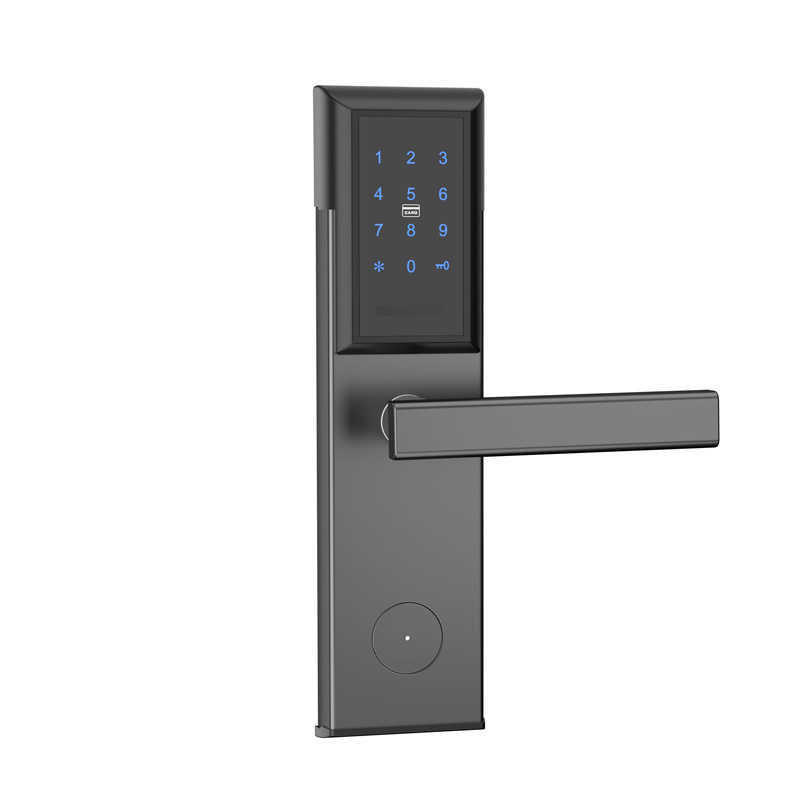

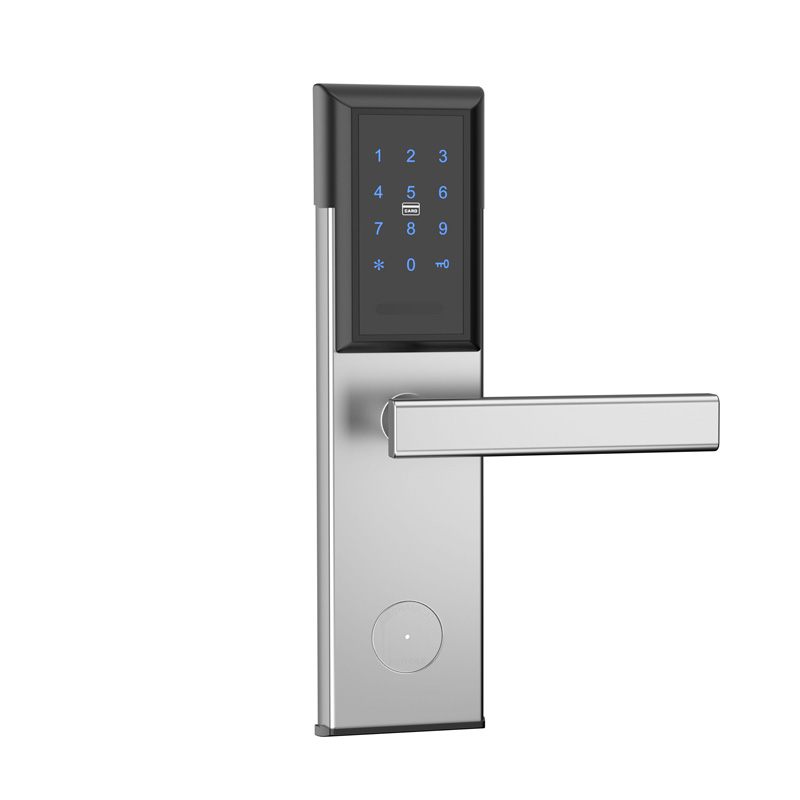

The Lock provides 2 colors for hotels, Raw Silver and dark black.
We also provide LOGO printing and carving on the door lock, to expose your brand to more clients.
| System Type | HTlock System | TTlock System |
|---|---|---|
| Model | JCM118E15 | JCBL600 |
| Software name | HTLock,Wishome,WisApartment | TTlock,TThotel,TThotelPro,TTrenting |
| System Integration | HTTP API, MQTT, PhoneSDK | HTTP API, .dll SDK, Phone SDK |
| Lock color | Silver, black | |
| Unlock way | RF card, Key, Pin code password, Bluetooth APP, Central Command via Gateway | |
| Lock material | 201 stainless steel | |
| Mortise | ANSI mortise | |
| Card type | M1 card, ISO14443 Type A, 13.56ＭHz | |
| Reading card distance | ≤3cm | |
| Working temperature | -20℃-70℃ | |
| Fit door thickness | 38-60 mm | |
| Fit door type | Wooden door | |
| Power supply | 4pcs AA batteries | |
| Low voltage alarm | Support | |
| Emergency Opening Options: | Emergency Opening with Mechanical cylinder | |
