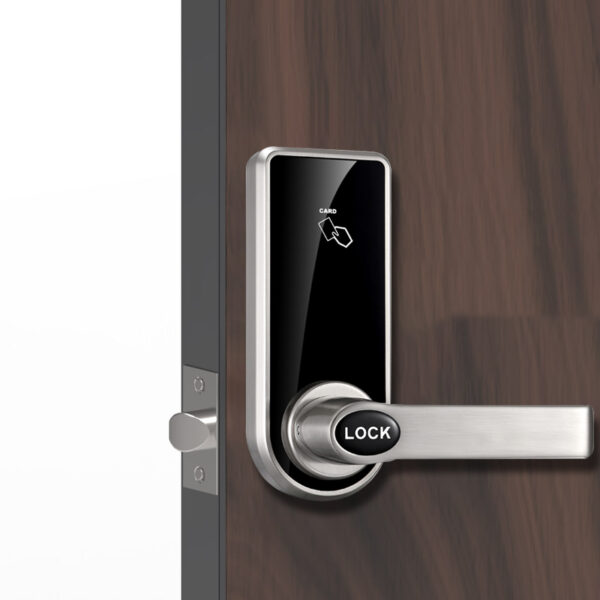

JCH1058E02 Wooden Door RFID Card Hotel Smart Lock

This Wooden Door RFID Card Hotel Smart Lock is support to unlock by card and keys, fit for apartments and hotel projects.

  • Material: zinc alloy material
  • Working Voltage: 4 AA Alkaline batteries
  • Low Voltage Alarm: <4.8V
  • Working Environment:-20℃~60℃
  • Unlocking record:200PCS
  • Door Thickness:38-70mm
  • Keycard Option:125khz T57 card, 13.56mhz Mifare 1 card
  • Size:L242mmxW77mmxH69mm
  • Fit for door type: wooden door, steel door
This Device Belongs to:

JCH1058E02 Wooden Door RFID Card Hotel Smart Lock

JCH1058E02 Wooden Door RFID Card Hotel Smart Lock

This model is Design for upgrading classic style knob locks to new RFID technology locking system with minimum modifications.

It supports Single latch size 50mm, 60mm,70mm. Multiple color available for choosing , the classical Copper and bronze metal handles will fit in the classical hotel doors easily.

Single latch Mortise 60 70 switch


1, Interface with most of the PMS system, Fidelio/Opera registered;
2, CE, FCC, RoHs Certified;
3, Zinc alloy material;
4, ANSI Standard mortise;
5, Inside Deadbolt ,Inside handle retracts latches and deadbolt;
6, Compatible with Mifare Energy Saver;
7, Lost Guest Card suspension simply by issuing a new guest card with suspending function;
8, Multiple operators with different card issuing authorization;
9, Low battery voltage warning.(Lower then 4.8V);
10, Self Error detecting with “Beep”;
11, Passage Model function available;
12, Can be integrated with 16 public areas such as Lift/Parking/Swimming Pool/Sauna Room/Tennis Court/Gym…etc (M1 card);
13, One hotel can be with 2 or more computers to work together;
