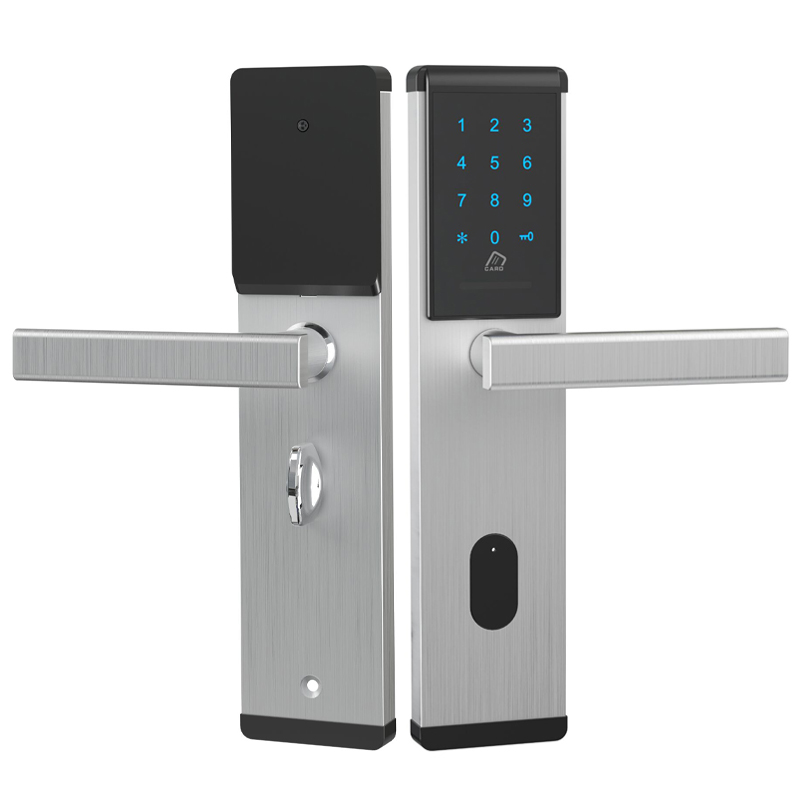

JCM2023 Password Hotel Door Lock
- Stainless steel lock for hotel
- Password unlock
- IC card unlock
- Cloud/LAN Management system
- APP unlock
- ANSI mortise support
- Lock Deadbolt to supply power
- Deadbolt to limite staff to access
- Door Not close alarm
Stainless Steel Smart Password Hotel Door Lock Unlock by APP, Password,Card
Password
Unlock by time limited password generated by lock management system.
IC Card
Issue a time limited type, traditional physical IC card to unlock the door.
APP
APP to unlock by Bluetooth in close range, without carrying any cards
Key
Traditional Mechanical Key when electronic system not available. Always reliable.
On Premised System to Serve Multiple Frontdesk and API integration
The Smart management System deploy on the Local network, keeps high availability, and fast connection.
All device connect to each other under the high speed Local network, can work without any Internet connection.
The password hotel door lock allow to generate a time limitation password with a few clicks, without a gateway unit, to reduce the system deployment cost.
The Password door lock can lock the deadbolt to activate the smart switch without using a card to insert. And switch cut when guest unlock the door and leave room, this will save the power consume in the hotel.
Hotels that using a PMS system can link to this system via API, to make cards, pin code, in once place to manage the passowrd hotel door lock
To understand how this work, we have built an online demo of the system, you can reviw it with below links. And a system decription page also availble for you have a full glance.
ANSI mortise for Seurity and Rich Features

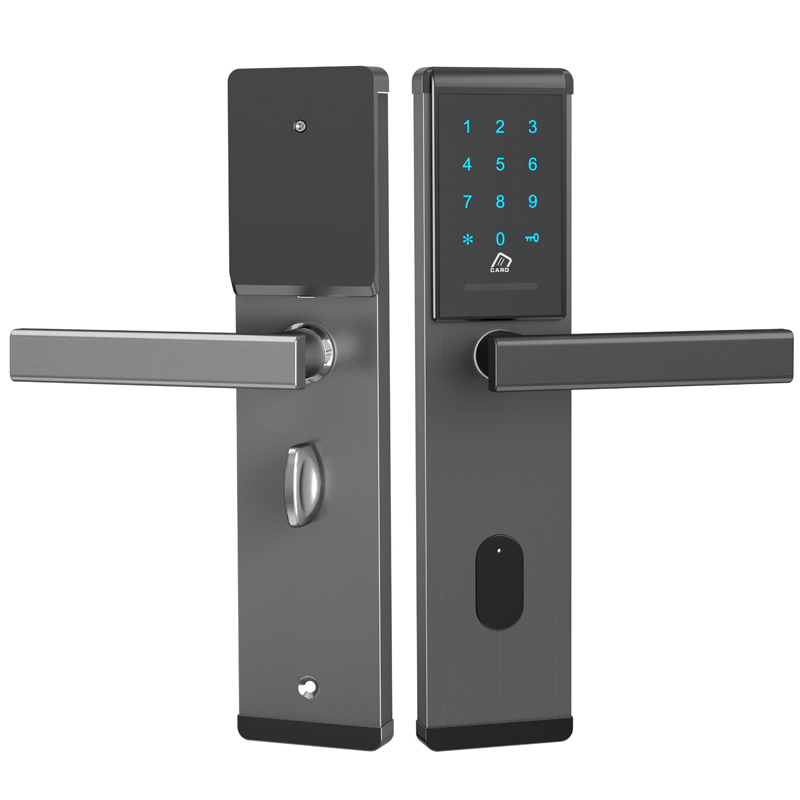

Multiple Color
| System Type | HTlock System | TTlock System |
| Model | JCM2023 | JCBL622 |
| Software name | HTLock,Wishome,WisApartment | TTlock,TThotel,TThotelPro,TTrenting |
| System Integration | HTTP API, MQTT, PhoneSDK | HTTP API, .dll SDK, Phone SDK |
| Lock color | Silver, black | |
| Unlock way | RF card, Key, Pin code password, Bluetooth APP, Central Command via Gateway | |
| Lock material | 201 stainless steel | |
| Mortise | ANSI mortise | |
| Card type | M1 card, ISO14443 Type A, 13.56ＭHz | |
| Reading card distance | ≤3cm | |
| Working temperature | -20℃-70℃ | |
| Fit door thickness | 38-60 mm | |
| Fit door type | Wooden door | |
| Power supply | 4pcs AA batteries | |
| Low voltage alarm | Support | |
| Emergency Opening Options: | Emergency Opening with Mechanical cylinder | |

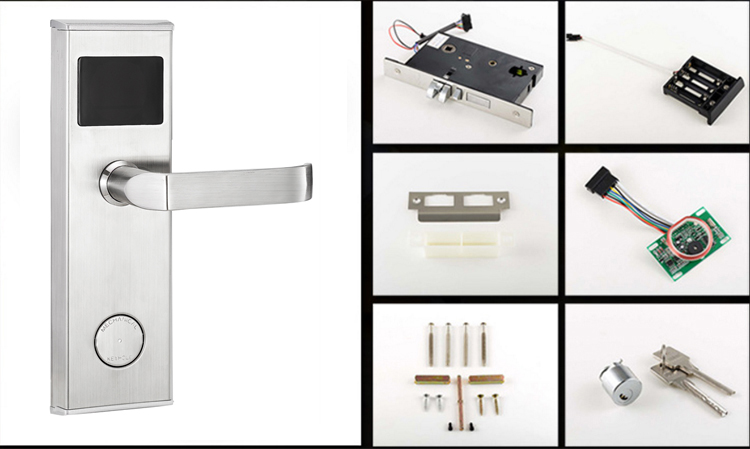

- Front Panel +Back Panel
- ANSI Mortise
- Screw Pack
- PCB (Already install insided panel)
- Key and Cylinder
